Supported Models:
Hyundai Genesis Coupe (BK) - USA Delivered Model Only
Engine Codes: Theta (2.0T) Only, Manual Transmission Only
Features:
• Direct plug and play replacement of the OEM ECU, No re-wiring necessary
• Uses the vehicles standard sensors & engine hardware
• Electronic Throttle Control - (Drive By Wire) with Cruise Control
• Retains instrument panel functionality via CAN communications
• Windows 2000, XP, Vista, Windows 7 compatible software
• Real time programming, instant hesitation free adjustment while engine is running
• Fully user definable 32 x 32 mapping with over 30 correction tables available
• Tuning via Volumetric Efficiency (VE) or Injection time
• OBDII Diagnostic Trouble Code Storing & Check Engine Light Control – Generic OBDII protocol Only
• Wideband “auto tuning” using user definable target AFR table
• USB and CAN Communication Port
Factory Outputs:
• 4 x Fuel Injector outputs (Peak & Hold) 4 x Ignition outputs (15A Internal) Electronic Throttle Control (DBW)
• AC Clutch Relay Check Engine Light Fuel Pump
• Thermo Fan Outputs Cruise Control
• Factory Inputs: MAP sensors Throttle Position Sensor Knock Detection Sensor
• Narrow Band Oxygen sensor Coolant Temperature sensor Vehicle Speed Sensor
• Air Temperature sensor Power Steering Switch Oil Temperature Sensor
• Brake Switch Clutch Switch
• Expansion I/O: 4 x Analogue Voltage Inputs, 1 x Digital Input, 4 x Digital Outputs
• Configurable for: Aux Rev Limiter Exhaust Gas Temperature Sensors Air Temperature Switch
• Flat Shift Fuel Temperature Sensors Aux Fuel Pump
• NOS Enable Oil Temperature Sensors Boost Control
• Fuel Pressure Sensor Diff Temperature Sensor Battery Light
• External Map Sensor (Up to 5 Bar) Gearbox Temperature Sensor Generic Duty Output
• Oil Pressure Sensor Generic Temperature Sensors Nitrous Activation Switch
• Wideband O2 Sensors Discrete ON/OFF Switches Flex Fuel Sensor
Plus much more ….
Expansions I/O:
Up to 36 more I/O channels are available using the optional Haltech I/O 12 and TCA 2/4 CAN Devices -
Functions:
• Closed Loop O2 Control Knock Control Long Term Fuel Trim Rev Limiter
• Closed & Open Loop Boost Control Gear Setup Nitrous Activation Output Over Boost
• Fuel Composition (E85/Flex Fuel) Speed Limiter Antilag Launch Decel Cut
Correction Tables:
• Fuel Ignition Boost
• Cranking Cranking Air Temp Target Correction
• Air Temperature Correction Air Temperature Correction Air Temp Duty Correction
• Coolant Temperature Correction Coolant Temperature Correction Coolant Temp Correction
• Map Correction Zero Throttle Gear Correction
• Cylinder Trim Cylinder Trim TPS Correction
• Generic Correction 1 Generic Correction 1 Generic Correction
• Generic Correction 2 Generic Correction 2
• Gear Correction Gear Correction
Miscellaneous: Data Logging:
• 448Kb of onboard data logging, Storage for approx 40 minutes at 10 logs per seconds, 6 channels of data
• Max 20 channels logging capability
• Tune can be password protected in software
• Rugged anodized aluminum casing
Factory Functions:
• Not Supported: Immobilizer Traction Control
Power Requirements:
• Source: 8.6 to 16.5 Volts DC
• Consumption: 530mA @ 12Volts DC
Physical Specifications:
Length: 179mm, Width: 158mm, Height: 42mm, Weight: 730g (1.6 lb)
The kit includes:

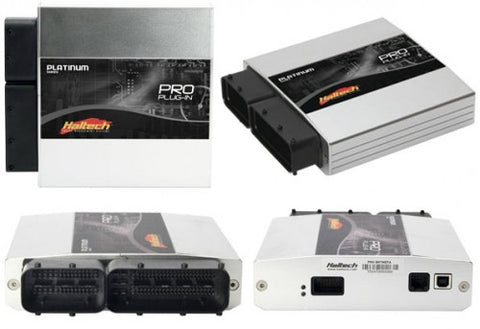

Platinum Pro Plug-in Pro Plug-in ECU, USB Cable, Programming Software CD, Quick Start Guide, Instruction Manual (on CD)
